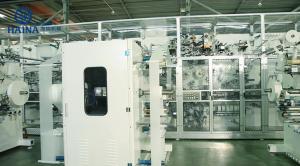

ISO9001 90 Tons 600PPM Diaper Manufacturing Machine

  • 1
  • 2

Brand Name : HAINA

Model Number : HNJX-TK500

Certification : ISO9001:2015

Place of Origin : JINJIANG, CHINA

MOQ : 1SET

Price : Negotiatable

Payment Terms : T/T

Supply Ability : 70 Machines Per Year

Delivery Time : 5 Months After Receiving Deposit and Confirm Product Drawing

Packaging Details : Seaworthy Packing

Diaper size : S/M/L/XL

Core forming : Pulp&Ultra thin

Direction : From R To L

Color : Customized

Condition : New

Efficiency : ≥85%

Wastage : ≤3%

Dimension : 35m*8.5m*4.5m

Contact Now

High Efficiency Low Wastage T Shape Diaper Manufacturer Machine For Factory

Basic process configuration:


High speed pulverizer(untreated
pulp is allowed)
Fluff forming unit
SAP dosing unit
Raw material feeding units
Elastic ear application unit
Notch cutter Unit
Longitudinal folding unit
Final cutter unit
Transverse folding unit
Air application unit
Safety protection unit

Production Name
Full servo baby diaper Machine
Control System
Full servo control (Mitsubishi brand from Japan) + PLC
Material
45# Steel
Machine System(For new machine)
Customized
Option A: Mitsubishi
Option B: Simens
Designed Production speed
600pcs/min
Stable Production Speed
500pcs/min
Glue machine
Customized
Option A: Chinese glue machine(Cost-effective)
Option B: Nordson machine
Web guide
Customized
BST web guide(or other brands)
Working space
35m*9m*5m(L*W*H)
Electric wire
3×120mm2+1×50mm2+1×25mm2
Certificate
CE
Other Service
 Engeering

Main Technical parameters

1. Supply,3 phase,380V,50Hz
2. Power:420KW(Excluding hot melt applicator and Compressor)
3. Production speed:500pcs/min
4. Qualification:≥97%
5. Outside dimension(m):35 x 9 x 5 (L×W×H)( for reference)

Main Functions and Features

(I) Mechanical part

1. Pulp SAP mixing product and laminating core product are compatible
2. High-density ultra-thin fluff core forming drum system, good absorbability,and low reverse osmosis
3. Pulp,SAP in ruled quantity apply, high and low speed uniform mixing distribution
4. 3D material online making application (option)
5. Zero no lower speed auto-splicing system
6. S cut side tape online making, no waste application
7. Top sheet 3-pcs laminating ultrasonic process(option)
8. Float core process(anti-folding surface)
9. With web guiding system
10. Packing machine or stacker (option)
11. Dust collection filter system (option)

(II) Electric part

1. Full servo motor drive and PLC control( CE standard)
2. One button for size change, with size change home point return(HPR) function
3. Touching screen,graphical, parametric operation, alarm information display on TV screen
4. Material picture ruled position application
5. Total production data collection
6. Local remote parameter setting
7. Machine running station real-time monitoring, and maintenance reminder
8. Supply MES data interface, realize machine remote monitoring and maintenance
9. Material auto-splicing joint limit at 3m, and decrease material wastage
10. Material auto-splicing inspect,broken and lost alarm system
11. High speed rejection system
12. Vision inspection system (option)
Our workshop
ISO9001 90 Tons 600PPM Diaper Manufacturing Machine
